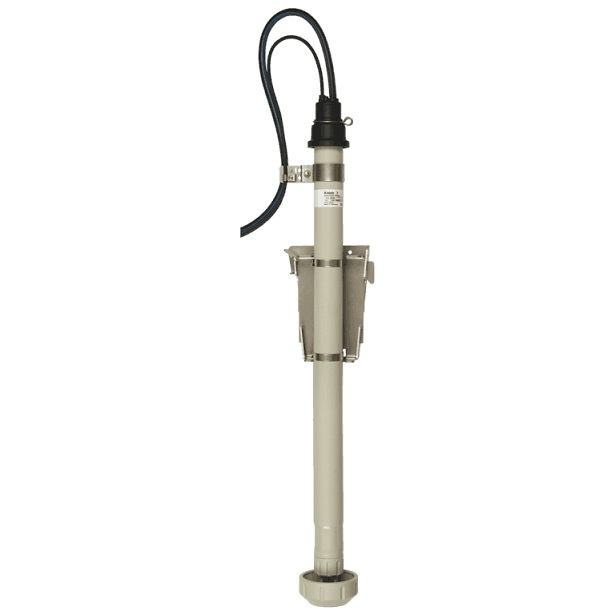

ARD 50
浸入式连接件
Modular Fitting with an Extraordinary Range of Functions for a Single Sensor
Facts and Features
- High variability – adaptable to virtually every process
- Safe functioning, easy maintenance thanks to a special and unique design
- Easy removal/installation of the sensor adapter with just ½ turn of a coupling nut (manual)
- Removal of the sensor adapter through the top or from the bottom of the immersion pipe
- No cable twisting during sensor installation
- Sensor adapter: PG 13.5 / SE 655, SE 656 (G 3/4“) / 3/4“ NPT
- Rinse function for cleaning the sensor without opening or disman-tling the fitting (PG 13,5, internal supply of rinse medium incl. check valve)
- Immersion depths: 25 – 250 cm
- Materials: PP-H, PVDF
- High pressure and temperature resistance
- Wetting cup
- Process connections:
flange DN 50 – DN 100 or ANSI 2“ – 4“, optionally with sliding flange bushing, wall holder, catenary suspension (also as submersible version)
- Cable glands: EPDM cap with cable support sleeves and strain relief, submersible cable glands
- Stainless steel bracket for strain relief of the sensor cable
The fitting is used for measuring in tanks, basins and channels. For maxi-mum flexibility, it offers numerous functions that can be freely combined. High-quality PP-H or PVDF makes it very sturdy. The special design facilitates sensor replacement.
Applications
PPH: Water, wastewater, industrial water
PVDF: Chemical and petrochemical industry, power plants, electroplating, ore processing
浸入式连接件
Knick的浸入式连接件 允许电极插入反应罐，锅炉，槽罐和有液体运输的敞口式水槽。这个护套可以很方便和安全的更换电极，另外可以通过嵌入式的清洗功能实现清洗电极的功能。
由于特殊和独特的设计和宽范围的材质可选性， 浸入式护套有很高的灵活可变性以适应工艺的需求。 |
